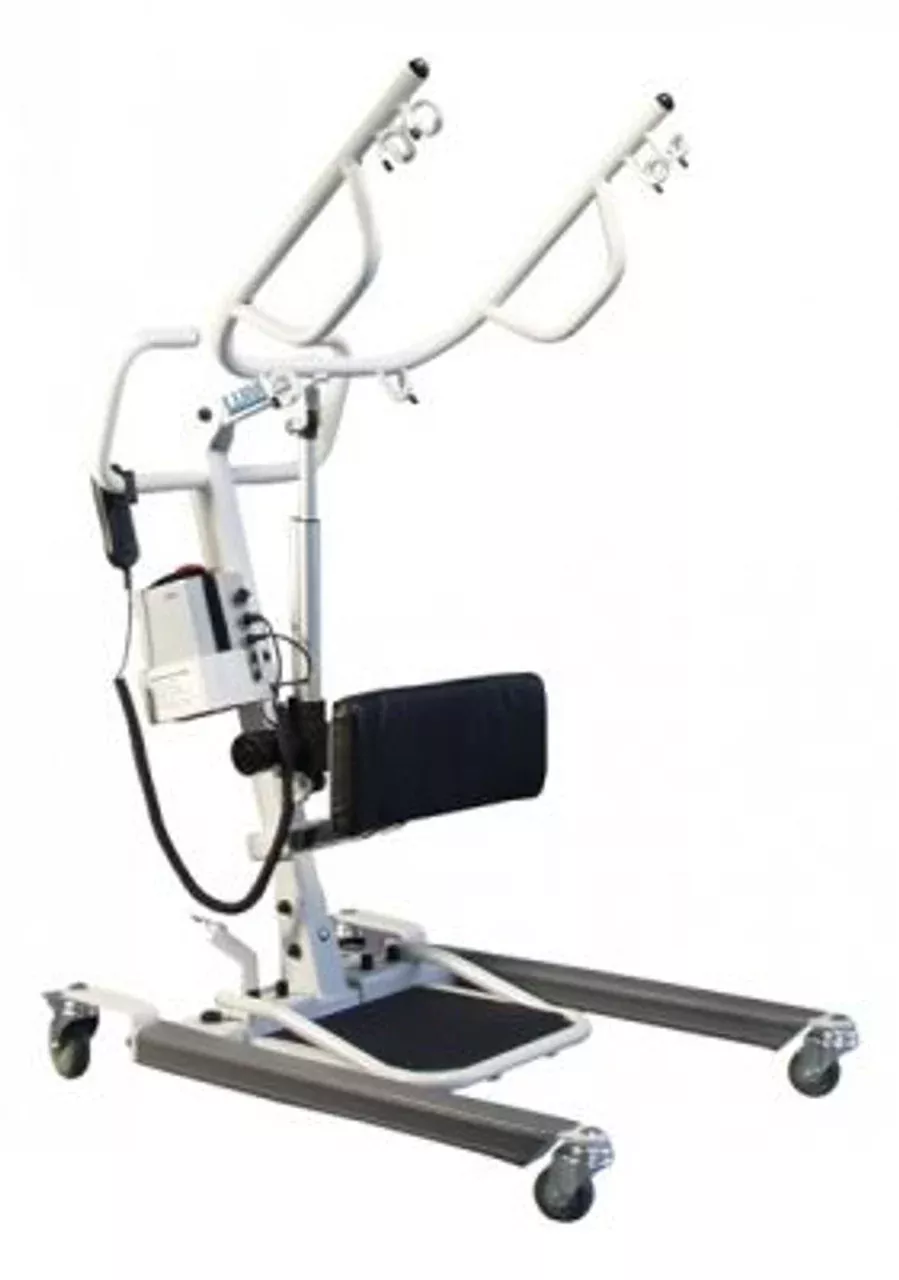

The Lumex LF2020 and LF2090 are specialized battery powered lifts designed for patients who have some weight-bearing ability but need assistance rising from a seated to a standing position. Both units feature a durable white powder-coated finish and a heavy gauge steel frame. The LF2020 provides standard 400 lb support for daily transfers, while the LF2090 is a bariatric-class lift supporting up to 600 lbs with reinforced components. These lifts include a large non-slip footplate and adjustable knee pads to ensure patient safety and comfort during the rising process.
| SKU | Product | Key Technical Details |
| Graham Field-LF2020 | Sit to Stand Patient Lift White 400 lb (1 EA) | 400 lb capacity; white powder coated; ergonomic hand grips. |
| Graham Field-LF2090 | Sit to Stand Patient Lift White 600 lb (1 EA) | 600 lb capacity; bariatric white finish; extra wide base. |
Note: Shipping, liftgate and inside delivery service are not included. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, you can reach us at our Toll-Free number: 800 202 6207.
Features
- Electric Power: Smooth 24V DC motor for quiet lifting operation.
- White Finish: Durable powder coating for long-term clinical use.
- Safety Grips: Multiple hand placement options for patient security.
- Emergency Stop: Quick-access button and manual lowering device.
- Foot Pedal Base: Easy leg opening to maneuver around chairs.
Specifications
- Weight Capacity: 400 lbs (LF2020) / 600 lbs (LF2090)
- Frame Material: Heavy gauge reinforced steel
- Maximum Height: 63″ (LF2020) / 68″ (LF2090)
- Minimum Height: 33″ (LF2020) / 38″ (LF2090)
- Base Width: 25.5″ (Closed) to 37″ (Open)
- Weight: 116 lb (LF2020) / 135 lb (LF2090)
Configurations
- LF2020: Sit to Stand Patient Lift White 400 lb (1 EA)
- LF2090: Sit to Stand Patient Lift White 600 lb (1 EA)
