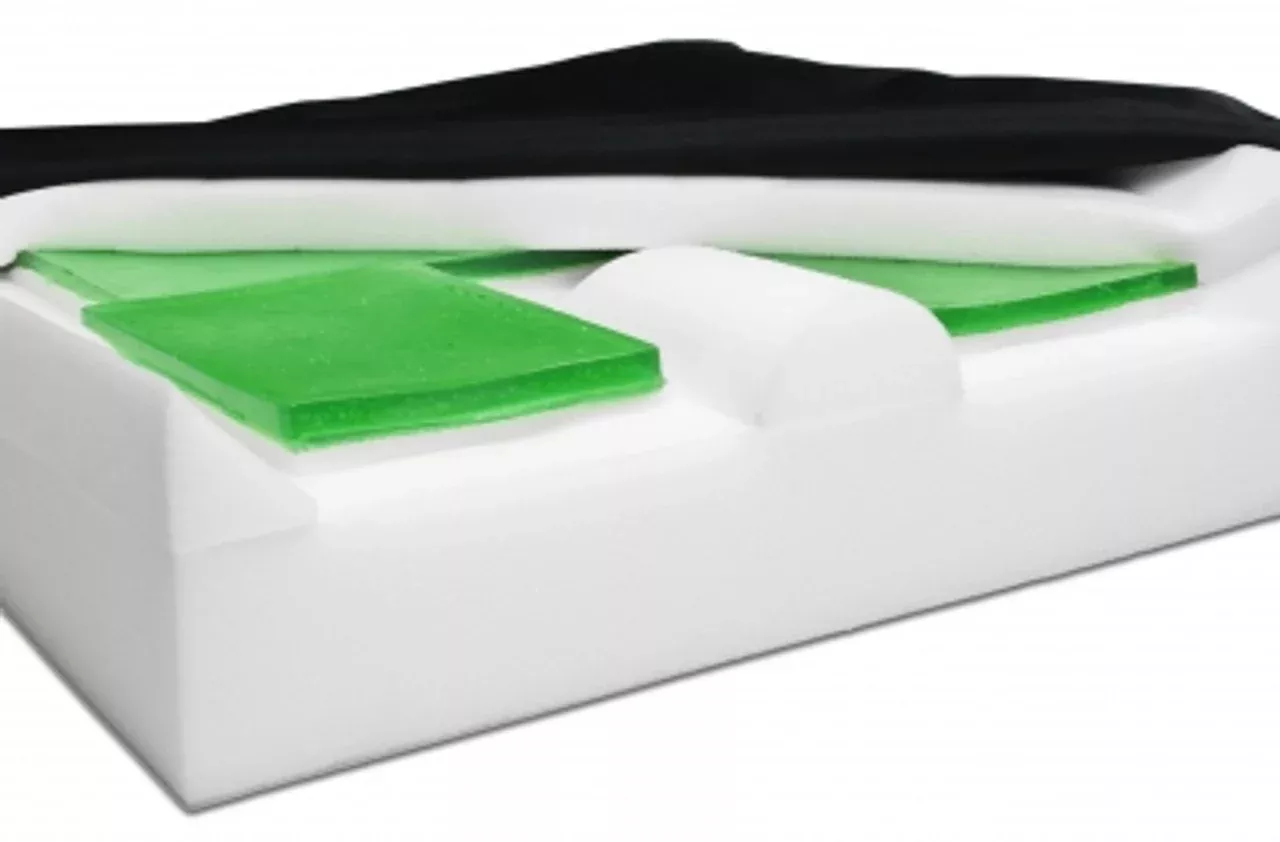

Graham Field Lumex Dura-Gel™ SPP provides superior skin protection and positioning. Its 4.5-inch profile features an anatomically contoured foam base with a pelvic well to ensure proper immersion of the bony prominences. The non-aqueous gel layer works with the visco-elastic topper to provide maximum pressure redistribution and comfort. This response includes 7 variants.
| SKU | Product | Key Technical Details |
| Graham Field-8920166 | 16″ x 16″ x 4.5″ (1 EA) | 16″ width; anatomically contoured; high-immersion gel; 250 lb capacity. |
| Graham Field-8920186 | 18″ x 16″ x 4.5″ (1 EA) | 18″ width; depth-optimized foam; E2607 coded; fluid-proof stretch cover. |
| Graham Field-8920188 | 18″ x 18″ x 4.5″ (1 EA) | 18″ square; medial/lateral thigh support; pelvic well; antimicrobial. |
| Graham Field-8920206 | 20″ x 16″ x 4.5″ (1 EA) | 20″ width; 16″ depth; multi-density foam core; non-skid vinyl base. |
| Graham Field-8920208 | 20″ x 18″ x 4.5″ (1 EA) | 20″ width; 18″ depth; enhanced postural stability; latex-free. |
| Graham Field-8920228 | 22″ x 18″ x 4.5″ (1 EA) | Bariatric; 22″ width; reinforced support; 350 lb capacity; security strap. |
| Graham Field-8920248 | 24″ x 18″ x 4.5″ (1 EA) | Maximum 24″ width; heavy-duty bariatric; maximum pressure redistribution. |
Features
- Contoured Base: Anatomical shape promotes pelvic stability and thigh alignment.
- SPP Technology: Specialized foam/gel combo for high-risk skin protection.
- Cover: Vapor-permeable, low-shear stretch fabric for skin integrity.
- Safety: Meets fire-retardant standards and is 100% latex-free.
- Stability: Non-slip bottom and rear straps keep the cushion in place.
- Bariatric Support: Wide sizes accommodate higher weight capacities up to 350 lbs.
Specifications
- Thickness: 4.5″.
- Core: Contoured Foam with Non-aqueous Gel.
- Cover: Stretch Nylon with Vinyl Bottom.
- Capacity: 250 lbs (Standard) / 350 lbs (Bariatric).
- Quantity: 1 Each (1 EA).
- Code: E2607.
- Weight: 5.5 lbs.
Configurations
- 8920166: Lumex Dura-Gel SPP 16 x 16 x 4.5 (1 EA)
- 8920186: Lumex Dura-Gel SPP 18 x 16 x 4.5 (1 EA)
- 8920188: Lumex Dura-Gel SPP 18 x 18 x 4.5 (1 EA)
- 8920206: Lumex Dura-Gel SPP 20 x 16 x 4.5 (1 EA)
- 8920208: Lumex Dura-Gel SPP 20 x 18 x 4.5 (1 EA)
- 8920228: Lumex Dura-Gel SPP 22 x 18 x 4.5 (1 EA)
- 8920248: Lumex Dura-Gel SPP 24 x 18 x 4.5 (1 EA)
