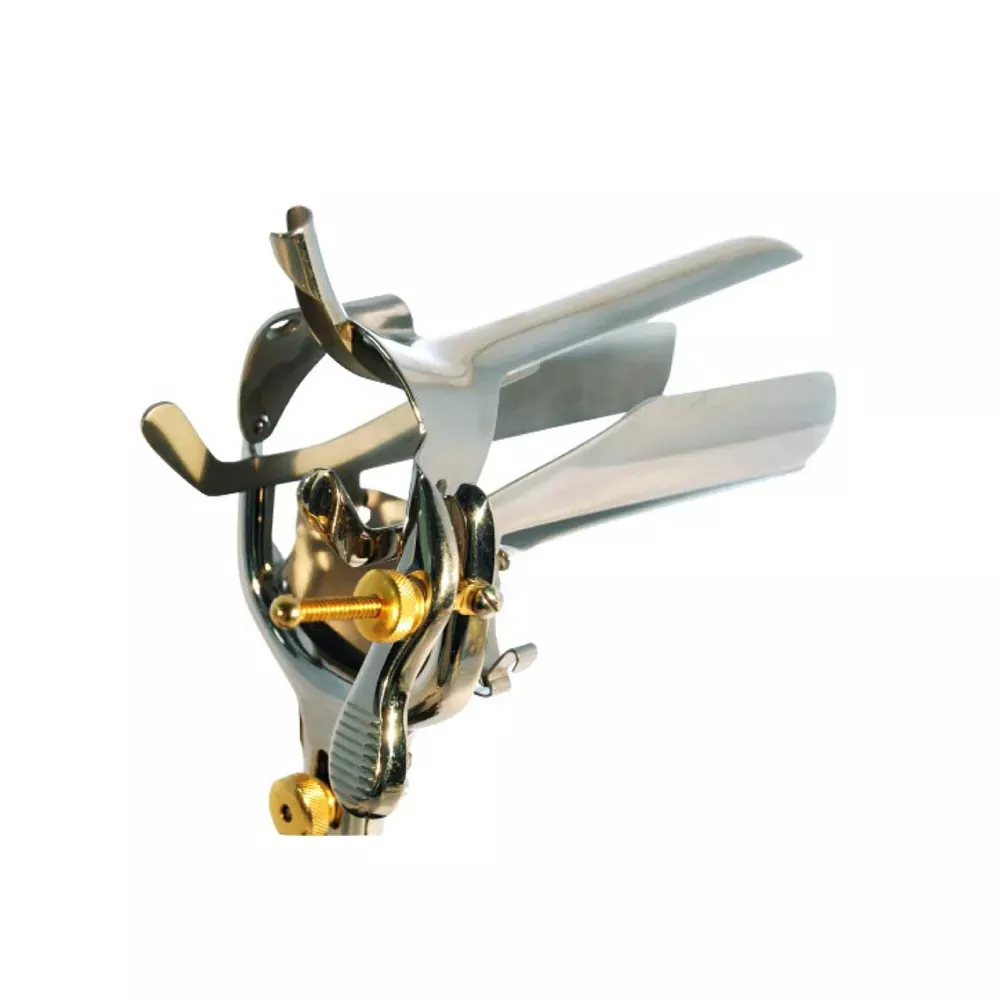

MedGyn 4-Way Lateral Expander Speculum
The MedGyn 4-Way Lateral Expander Speculum is a sophisticated electrosurgical instrument designed for complex LEEP and LLETZ procedures. Unlike standard two-blade speculums, this innovative 4-way design features two primary blades and two lateral expansion blades that effectively manage redundant vaginal tissue, preventing lateral wall collapse from obstructing the surgical field. To ensure the highest level of safety, the instrument is fully coated with a durable, non-conductive blue dielectric insulation that prevents electrical arcing during the use of loop electrodes. This speculum provides a completely unobstructed view of the cervix and a stable working environment for high-precision operative colposcopy.
| SKU | Quantity | Key Technical Details | |
| MedGyn-038095 | 4-Way Expander Medium Insulated | 1 Each | 22mm x 108mm; Blue Dielectric Coating; 4-Way Blade. |
| MedGyn-038096 | 4-Way Expander Large Insulated | 1 Each | 22mm x 133mm; Blue Dielectric Coating; 4-Way Blade. |
Features
- 4-Way Expansion Technology: Integrated lateral blades provide superior retraction of the side vaginal walls, maximizing the surgical field.
- Dielectric Safety Insulation: The high-performance blue coating provides a critical electrical barrier, protecting both patient and clinician during electrosurgery.
- Unobstructed Visualization: Specifically engineered to keep redundant tissue out of the line of sight for precise cervical excision.
- Premium Surgical Steel: Constructed from high-quality stainless steel under the insulation to ensure structural integrity and a lifetime of use.
- Integrated Smoke Evacuation Tube: Designed to work seamlessly with smoke evacuation systems to maintain a clear field of view and safe clinical environment.
- Autoclavable Longevity: Engineered to withstand repeated steam sterilization cycles without degrading the safety coating.
Specifications
- Brand: MedGyn.
- Instrument Style: 4-Way Lateral Expander.
- Insulation: Non-conductive Blue Coating.
- Blade Width: 7/8″ (22mm).
- Lengths: 4 1/4″ (108mm) and 5 1/4″ (133mm).
- Application: LEEP, LLETZ, and Operative Colposcopy.
- Weight: 1.15 lb.
Configurations
- 038095: 4-Way Lateral Expander Speculum – Medium 1″ x 4″ (22mm x 108mm)
- 038096: 4-Way Lateral Expander Speculum – Large 1″ x 5″ (22mm x 133mm)
